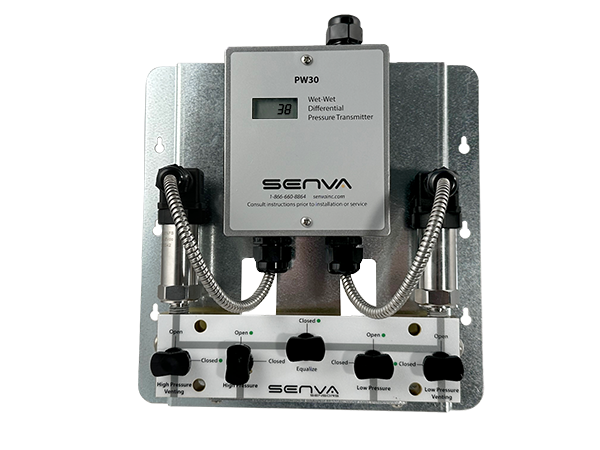

PW30 Series

Remote Wet-to-Wet
Differential Pressure Sensor
Higher Reliability, Faster Installation, Superior Accuracy | Sense the Difference

Remote Wet Differential Pressure Sensor

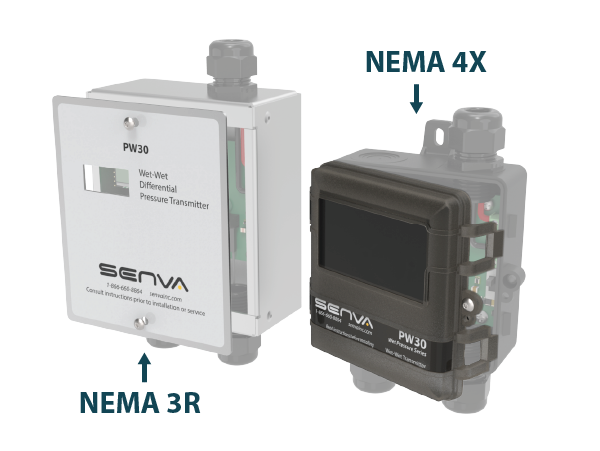

Plastic and metal options available Remote sensors eliminate need for bypasses Independent installation for mechanical & electrical trades Available with prewired armored cable or exposed cable Dip switch terminal and field selectable outputs for easy installation Metal or Plastic tamper resistant enclosures provided added layer of security Accepts rigid conduit and field wiring

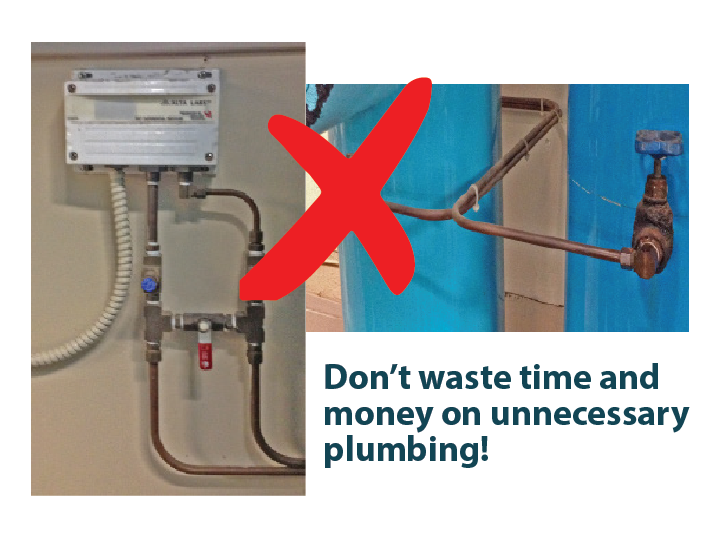

Revolutionary design eliminates plumbing/bypass assemblies
16 selectable differential ranges in one device
LCD display for verification of high, low, and differential pressures
  • Drastically reduce plumbing needs and save installation time

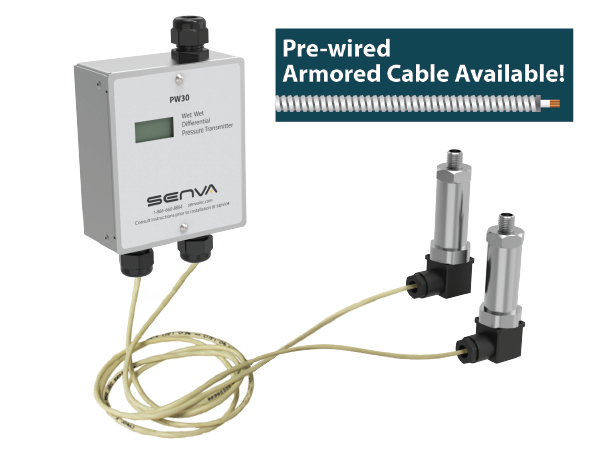

  • Order with pre-fabricated wire to save additional time
  • Single device for 1-500 PSID makes ordering easy
  • LCD and dip switches make configuration fast and simple
  • Display kPa or PSID units

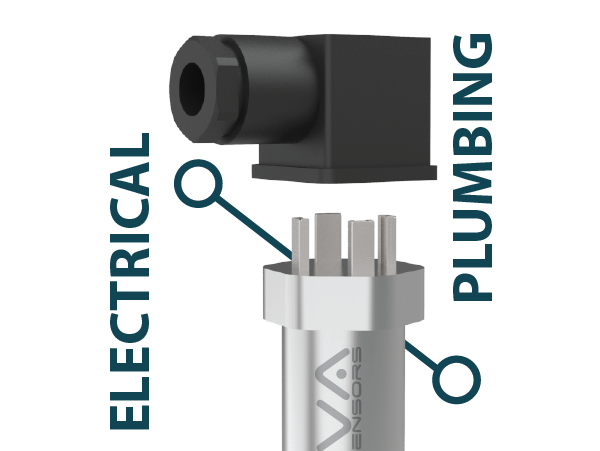

  • Remote sensors come standard with DIN43650 connection for easy plug-and-play, no wire twisting
  • MEMS sensor technology
  • Integrated surge snubber protects sensor from water hammer for reliable long term performance
  • Manual and remote zero for maintained accuracy
  • Port swap corrects plumbing errors
  • Fast/slow switch for desired  response time
  • Uni/bi directional
  • Test mode - forces full scale output

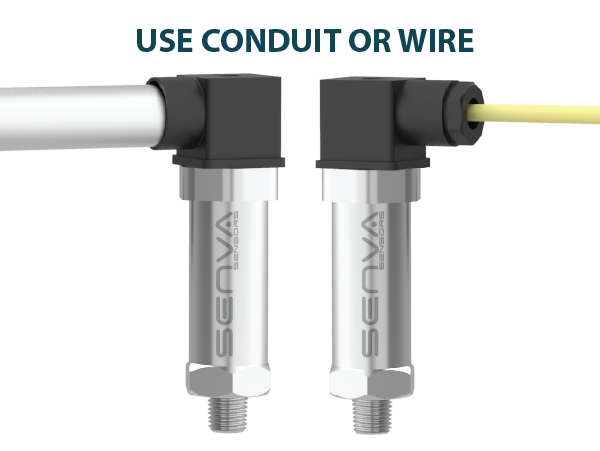

  • Conduit and wire connection compatible

Description

The PW30 Series uses remote sensors to eliminate the need for costly bypass assemblies, enabling fast, cost effective installation. The remote sensors mount directly to pipe to eliminate bleeding and additional plumbing. Sensors come with both conduit and wire connection options. Optional factory pre-wired harnesses also available in wire and armored cable versions. Standard LCD screen and dip switches make configuration a breeze. Measure 16 differential pressure ranges from 1-500 PSID with a single device without sacrificing accuracy. Selectable output 0-5V, 0-10V, or 2 Wire 4-20mA.

Applications

  • Demand measurement in HVAC systems for pump speed control and local indication
  • Process control systems
  • Flow measurement of gases, vapors, and liquids compatible with 316L SS
  • Filter status monitoring
  • System leak detection

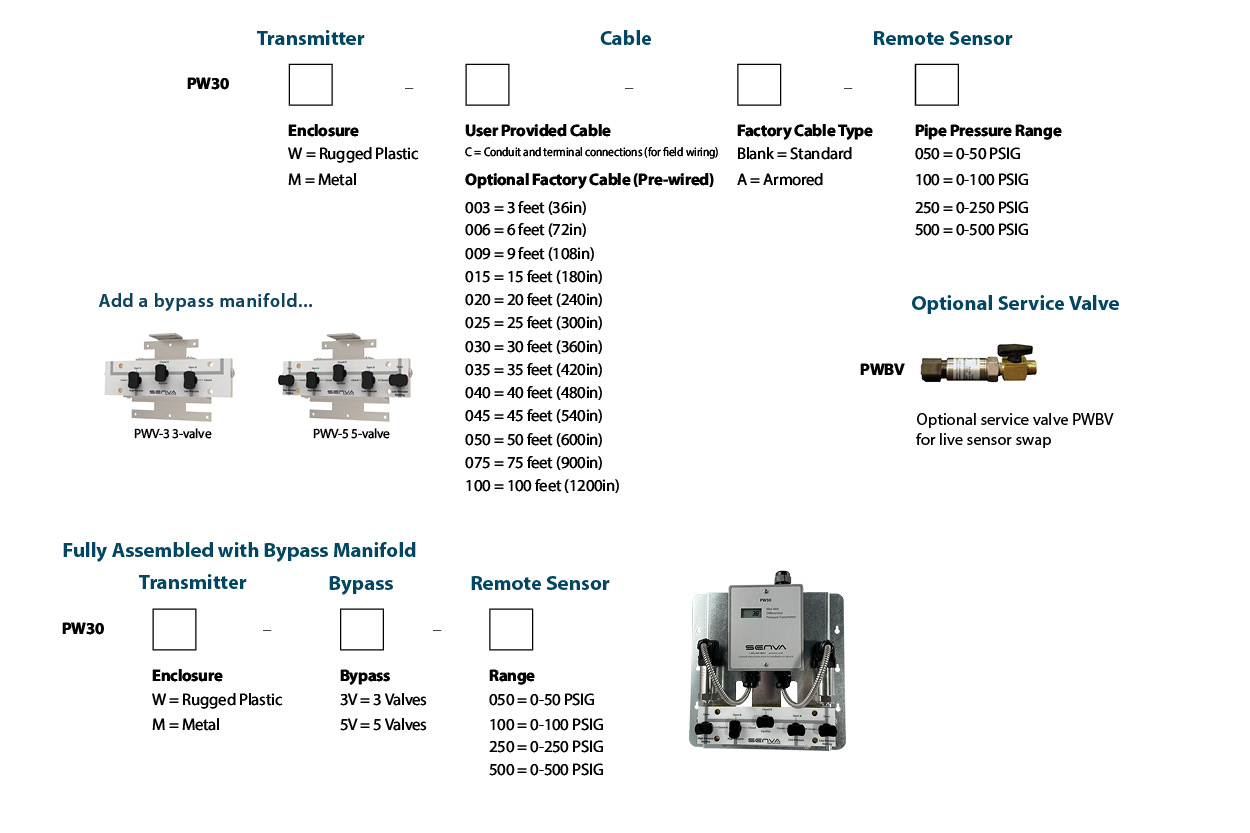

Product Price Quantity
PW30M-003 Wet transducer metal 3'cables standard
$590.47 /

EA

PW30M-003-A Wet transducer metal 3'cables armored
$647.23 /

EA

PW30M-006 Wet transducer metal 6'cables standard
$603.82 /

EA

PW30M-006-A Wet transducer metal 6'cables armored
$707.33 /

EA

PW30M-009 Wet transducer metal 9'cables standard
$620.52 /

EA

PW30M-009-A Wet transducer metal 9'cables armored
$735.15 /

EA

PW30M-015 Wet transducer metal 15'cables standard
$657.25 /

EA

PW30M-015-A Wet transducer metal 15'cables armored
$847.57 /

EA

PW30M-020 Wet transducer metal 20'cables standard
$673.94 /

EA

PW30M-020-A Wet transducer metal 20'cables armored
$936.59 /

EA

All prices shown are excluding tax unless otherwise specified.
