TotalSense Series

Indoor Environmental and Air Quality Sensor
Higher Reliability, Faster Installation, Superior Accuracy | Sense the Difference

TotalSense RH/T/PIR Wall

Versatile User Interface Options PIR Motion Detection (optional) - Detect occupancy for quicker and safer ventilation Slim enclosure for more discreet sensing (display optional) - Slider and pushbuttons options available Made with the highest standard of quality in USA

Industry’s first IAQ sensor with PIR motion detection
Six environmental sensors: PIR, RH, T, ambient light
BACnet/Modbus or analog outputs with set-point relay

  • Color display and Air Quality Ring for tenant assurance (programmable)
  • Initiate ventilation immediately upon occupancy detection for healthier buildings and energy savings
  • Capacitive touch buttons make setup and use simple
  • Slim and sleek surface-mount enclosure is tamper-proof and easy to install
  • Field-replaceable sensors ease maintenance
  • Set-point sliders and pushbuttons are also available to meet the requirements for any job
  • 7-year limited warranty / 3 years on CO2 sensor - 2 years on all others

Description

The TotalSense Humidity version is designed for quick-installation and complete flexibility. With options for analog or BACnet/Modbus connectivity, four display options, various thermistors, sliders, and pushbuttons, it can be configured for any job. Motion detection (PIR) can initiate ventilation upon occupancy, providing air exchanges the instant people are present (in addition to monitored elevated CO2 levels.) This technology provides a much faster trigger for ventilation allowing for cleaner and safer indoor spaces while still saving energy. PIR and ambient light sensors can also be utilized for light harvesting for additional energy savings and code compliance. The TotalSense Series also includes a comprehensive selection of IAQ sensors. For options including CO2, TVOC, or PM, see the "indoor air quality" section.

Applications

Energy management/building control
Facilitates compliance with ASHRAE 62.1 standard for air quality

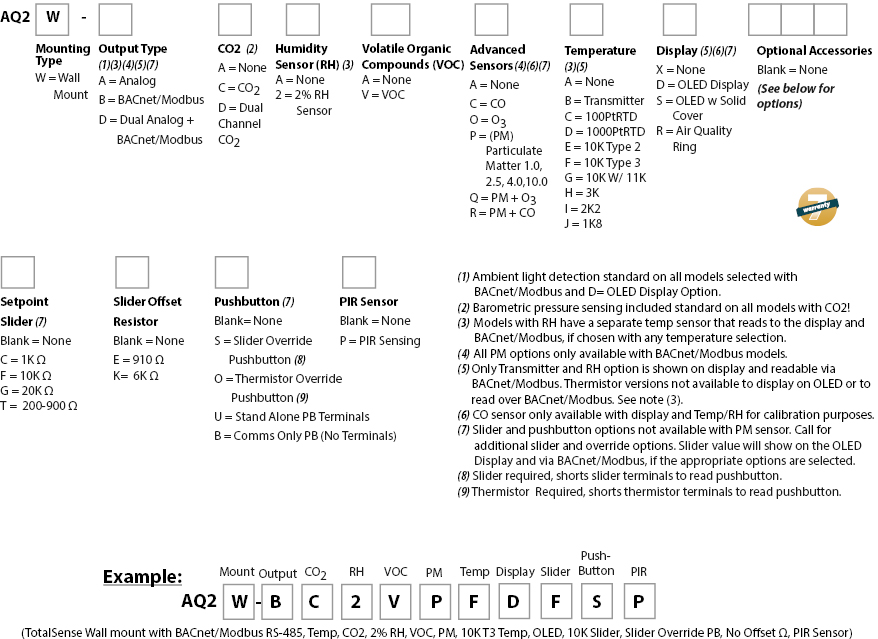

Product Price Quantity
AQ2W-AA2AAAD Surf Wall,Anlg,2%RHOLED
$375.00 /

EA

AQ2W-AA2AAADC Surf Wall,Anlg,2%RHOLED,1K Sld
$396.00 /

EA

AQ2W-AA2AAADCP Surf Wall,Anlg,2%RH,PIRNo Tmp,OLED,1K Sld
$441.00 /

EA

AQ2W-AA2AAADCU Surf Wall,Anlg,2%RHOLED,1K Sld,PB
$405.00 /

EA

AQ2W-AA2AAADCUP Surf Wall,Anlg,2%RH,PIRNo Tmp,OLED,1K Sld,PB
$450.00 /

EA

AQ2W-AA2AAADP Surf Wall,Anlg,2%RHNo Tmp,OLED,PIR
$420.00 /

EA

AQ2W-AA2AAADP Surf Wall,Anlg,2%RHNo Tmp,OLED,PIR
$420.00 /

EA

AQ2W-AA2AAADU Surf Wall,Anlg,2%RHOLED,PB
$384.00 /

EA

AQ2W-AA2AAADUP Surf Wall,Anlg,2%RH,PIRNo Tmp,OLED,PB
$429.00 /

EA

AQ2W-AA2AAAR Surf Wall,Anlg,2%RH,NoTemp,LED
$345.00 /

EA

All prices shown are excluding tax unless otherwise specified.
