Power Supply
|
|
15-30VDC/24VAC(1), 4W max, 160mA max
|
|
Wiring
|
Conductor |
14-24 AWG, Minimum 600V, 75°C
|
| Terminal Torque |
0,5 N·m
|
|
Analog Outputs
|
2 programmable outputs
|
0-10V (default), 0-5V, 1-5V, 4-20mA (menu selectable)
|
|
CO Output Scaling
|
0-200ppm (default), 0-1000ppm (menu selectable)
|
|
NO2 Output Scaling
|
0-10ppm (default), 0-30ppm (menu selectable)
|
|
CO2 Output Scaling
|
0-10,000ppm (default); 0-10,000ppm (menu selectable)
|
|
Propane/Methane/Hydrogen Output Scaling
|
0-50% LEL (default), 0-50% LEL (menu selectable)
|
|
Oxygen Output Scaling
|
0-25% Vol (default), 0-25% Vol (menu selectable)
|
|
Refrigerant Output Scaling
|
0-1000ppm (default), 0-1000ppm (menu selectable)
|
|
Hydrogen Sulfide (H2S) Output Scaling
|
0-100ppm (default), 0-100ppm (menu selectable)
|
|
Ammonia (NH3) Output Scaling
|
0-100ppm (default), 0-100ppm (menu selectable)
|
|
Temperature Output Scaling
|
-20 to 85°C
|
|
BACnet/Modbus
|
Protocol RS-485
|
BACnet MS/TP, Modbus RTU, Modbus ASCII
|
|
Baud Rates
|
9600, 19200, 38400, 57600, 76800, 115200
|
|
RS-485 Loading
|
1/4 unit
|
|
Fan Relay
|
Fan relay characteristics
|
N.C. 1A@24/30VDC (50/60Hz) (no mains connection)
|
|
Fan relay setpoint
|
300 ppm (default), 0-1000 ppm (menu selectable)
|
|
Alarm Relay
|
Alarm relay characteristics
|
N.C. 1A@24/30VDC (50/60Hz) (no mains connection)
|
|
Alarm relay setpoint
|
600 ppm (default), 0-1000 ppm (menu selectable)
|
|
Display
|
3-1/2 digit LCD
|
Indicates CO ppm, NO2 ppm, Temp (menu selectable) (menu selectable)
|
|
LEDs
|
Green, Yellow, Red
|
Green = Normal, Yellow = Relay, Red = Alarm
|
|
Audible Alarm
|
85dB @4" Piezo transducer
|
30 minutes above alarm setpoint per UL2075 (menu selectable)
|
|
CO Sensor Performance (6)
|
Type
|
Electrochemical
|
|
Accuracy
|
±5% of Default Range, ±5% of Reading Above 200ppm
|
|
Resolution
|
1ppm
|
|
Certifications
|
UL2075 Recognized component
|
|
Life Expectancy
|
7 years
|
|
Recommended Calibration
|
Annual
|
|
Recommended Height and Coverage Area
|
3 to 6 feet; coverage 500-7500 sq. ft.
|
|
NO2 Sensor Performance (7)
|
Type
|
Electrochemical
|
|
Accuracy
|
±5% of Default Range, ±5% of Reading Above 20ppm
|
|
Resolution
|
0.1ppm
|
|
Certifications
|
UL2075 Recognized component
|
|
Life Expectancy
|
7 years
|
|
Recommended Calibration
|
Annual
|
|
Recommended Height and Coverage Area
|
3 to 6 feet; coverage 5000 - 7500 sq. ft.
|
|
CO2 Sensor Performance
|
Type
|
Non-dispersive Infrared (NDIR)
|
|
Accuracy (8)
|
±(30ppm +3% of reading) (400-2000ppm), @-10-50°C
±(50ppm +5% of reading) Standard (2000-5000ppm), @-10-50°C
±(50ppm +3% of reading) Dual Channel (2000-5000ppm), @-10-50°C
±(100ppm +10% of reading) (5000-10000ppm), @0-50°C
|
|
Drift with ABC disabled (9)
|
35ppm/month (10) (Standard) 5ppm/month (10) (Dual Channel)
|
|
Range
|
0-2000/5000ppm; Programmable up to 10,000ppm
|
|
Resolution
|
1 ppm
|
|
Life Expectancy
|
15 years
|
|
Response Time
|
30s
|
|
Sample Rate
|
1s
|
|
Recommended Height and Coverage Area
|
3 to 6 feet; coverage 5000 - 7500 sq. ft.
|
|
Methane/Propane/Hydrogen Sensor Performance
|
Type
|
Catalytic
|
|
Detection Range
|
0-50% LEL (Lower Explosive Limit)
|
|
Accuracy
|
±5% of Range
|
|
Resolution
|
1% LEL
|
|
Certifications
|
UL2075 Recognized component for Methane/Propane
|
|
Life Expectancy
|
>5years
|
|
Response Time
|
<10s to 90%
|
|
Recommended Calibration
|
Bump test annually, calibrate or replace if necessary. (11)
|
|
Long Term Stability Drift
|
Zero: <±2mV/year
Sensitivity: <±2mV/month
|
|
Recommended Height and Coverage Area
|
Hydrogen/Methane: 0.5 to 1 foot from ceiling; coverage 5000-7500 sq. ft.
Propane: 1-3 ft. above finished floor; coverage 5000 square feet.
|
|
Oxygen Sensor Performance
|
Type
|
Electrochemical
|
|
Detection Range
|
0-25% Volume
|
|
Accuracy
|
±5% of Range
|
|
Resolution
|
0.1%
|
|
Life Expectancy
|
5 years
|
|
Recommended Calibration
|
Annual
|
|
Recommended Height and Coverage Area
|
3 to 6 feet; coverage 5000-7500 sq. ft.
|
|
Hydrogen Sulfide (H2S) Sensor Performance
|
Type
|
Electrochemical
|
|
Detection Range
|
0-100 ppm
|
|
Accuracy
|
±5% of Range
|
|
Resolution
|
1 ppm
|
|
Life Expectancy
|
5 years
|
|
Recommended Calibration
|
6 months
|
|
Recommended Height and Coverage Area
|
3 to 6 feet; coverage 5000 - 7500 sq. ft.
|
|
Ammonia (NH3) Sensor Performance
|
Type
|
Electrochemical
|
|
Detection Range
|
0-100 ppm
|
|
Accuracy
|
±5% of Range
|
|
Resolution
|
0.1 ppm
|
|
Life Expectancy
|
5 years
|
|
Recommended Calibration
|
6 months
|
|
Recommended Height and Coverage Area
|
0.5 to 1 foot from ceiling; coverage 5000-7500 ft.
|
|
Refrigerant Sensor Performance
|
Type
|
MOS
|
|
Detection Range
|
0-1000 ppm
|
|
Resolution
|
1 ppm
|
|

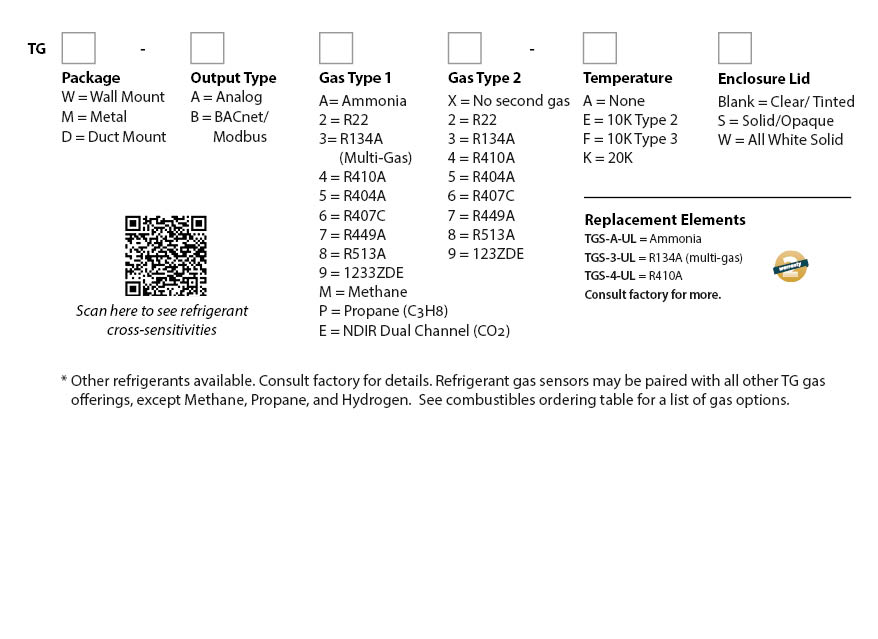

R22, R134A, R410A, R404A, R407C
|
Factory calibrated for respective gas
|
|
R134A Sensitivity(2)
|
@300ppm test gas: 450 ppm R410A, 425 ppm R407C, 400 ppm R404A, 370 ppm R22, 300 ppm R134A, R134
|
|
Other detectable gases(3)
|
R407A, R407F, R427A, R452B, R507, R448A, R454B, R455A, R455C, R422A, R422D, R452A, R514A, R32, R123. Consult factory for other A2L gases
|
|
Life expectancy
|
>10 years (typical life expectancy for MOS sensors)
|
|
Recommended Calibration
|
6 months
|
|
Recommended Height and Coverage Area
|
6 inches above floor; no more than 18 inches above lowest level of equipment location for leak detection; coverage 5000-7500 sq. ft. (Click for details)
|
|
Operating Environment
|
Temperature, Operational(4)
|
-20 to 50oC (MOS rated down to -30°C; CO2 versions rated to -40oC)
|
|
Humidity
|
15-90% continuous, 0-99% intermittent
|
|
Max Elevation
|
2000m, Refrigerant 2629 m (8625 ft) (5)
|
|
Enclosure
(Wall & Duct)
|
Material
|
ABS/Polycarbonate
|
|
Dimensions
|
4.0”h x 4.4”w x 2.1”d
|
|
Conduit Opening
|
Tapped 1/2” NPT
|
|
Rating
|
IP43 or NEMA 3R
|
|
Enclosure
(Metal)
|
Material
|
Powder-coated steel/acrylic
|
|
Dimensions
|
5.0”h x 4.3”w x 2.25”d
|
|
Opening
|
Dual air vents on bottom of enclosure
|
|
Mounting
|
Pre-drilled for 2x4” electrical box
|
|
Rating
|
IP41 or NEMA 3R
|
|
Agency
|
Compliance
|
UL61010-1 Listed UL, cUL, CE
|
|
(1) One side of transformer secondary is connected to signal common. Dedicated transformer is recommended. No mains circuit connection allowed. In addition, it is required to use an isolated power supply that is certified by a national or international standard (i.e. UL). Use of a Class 2 LPS power supply or greater is required.
(2) R134A sensor is factory calibrated to R134A gas but may be used as a general-purpose refrigerant sensor. Sensitivity to some other gases can be found in the installation manual. Actual response may vary depending on installation. For more accurate response to a specific gas, a unit may be field calibrated.
(3) These gases may be detected by the sensor, but sensitivity curves are not available at this time.
(4) Accuracy of CO2 reading may be reduced at temperatures below 14ºF (-10°C).
(5) Refrigerant sensors have been tested to perform at this altitude. To maintain accuracy spec, a field calibration is recommended.
(6) Carbon Monoxide full scale is 1000ppm.
(7) Nitrogen Dioxide full scale is 30ppm.
(8) CO2 sensor is equipped with a heater to account for temperatures down to -40°C.
(9) It is not recommended to de-activate ABC (auto-calibration) except for continuously occupied spaces or greednhouses. Drift ratings may vary based on encironment.
(10) Combination CO/Methane, CO/Propane, or CO/Refrigerant sensors should be mounted according to Propane/Methane/Refrigerant recommendations. Consult factory for other comvinations. Mounting height recommendations may be adjusted according to installation. Ensure sensor is accessible for maintenance and target gas has unobstructed access to sensor. Mount in accordance with ANSI/NFPA 70 and NEC or CEC.
(11) A bump test involves exposing the sensor to a reference gas and detecting the sensor’s response. If sensor response is out of accuracy range, recalibration or replacement of the sensor element may be necessary.
|
