CALGAS Series

Gas Calibration Kit
Higher Reliability, Faster Installation, Superior Accuracy | Sense the Difference

Gas Calibration Kit

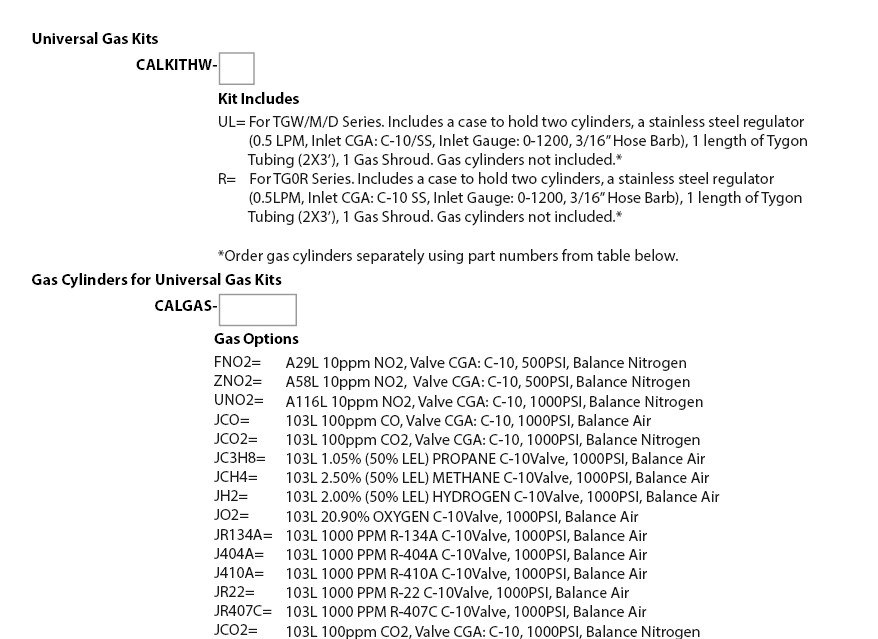

Universal Gas Kit CALKITHW-UL. Gas cylinders purchased separately. CALGAS-XXXX Test Gas Cylinders

Calibration Gas Kit CALKITHW-UL

  • Includes case to hold two cylinders
  • Regulator, Stainless Steel, 0.5 LPM, Inlet CGA: C-10/SS, Inlet Gauge: 0-1200, 3/16” Hose Barb
  • Tygon Tubing (2X3’)
  • Gas Shroud (CALSHROUD-UL: calibration of NO2,H2S,NH3,O3, and MOS)*
  • Order gas cylinders separately

Calibration Gas Kit CALKITHW-CO

  • Includes case to hold two cylinders
  • Regulator, Stainless Steel, 0.5 LPM, Inlet CGA: C-10/SS, Inlet Gauge: 0-1200, 3/16” Hose Barb
  • Tygon Tubing (2X3’)
  • Gas Shroud (CALSHROUD-TG0R for TG0R series sensors)
  • Gas Shroud (CALSHROUD-AQ2 for AQ2 series sensors)
  • Gas Shroud (CALSHROUD-TGR for TGR series sensors)
  • Gas Shroud (CALSHROUD-CO for CO in TGx series)
  • Order gas cylinders separately

Calibration Gas Kit CALKITHW-CAT

  • Includes case to hold two cylinders
  • Regulator, Stainless Steel, 0.5 LPM, Inlet CGA: C-10/SS, Inlet Gauge: 0-1200, 3/16” Hose Barb
  • Tygon Tubing (2X3’)
  • Gas Shroud (CALSHROUD-TGCAT: calibration of catalytics: CH4, C3H8, H2)
  • Order gas cylinders separately



Pre-calibrated replacement sensors TGS-x-xx

  • Available for all available TG sensors
  • Factory calibrated
  • CO and NO2 sensors include calibration certificate
  • Save time and money on annual calibration

Description

All gas monitors must be calibrated on a regular basis. Readily verify sensor calibration and adjust as appropriate. Rugged case for ease of transport and deployment.

Applications

▪ Quick and accurate calibration or commissioning verification

Product Price Quantity
CALGAS-FNO2 29L 10PPM NO2, C-10 Valve, 500PSI, Balance Air
$1,001.70 /

EA
CALGAS-J404A 103L 1000 PPM R-404A, C-10Valve, 1000PSI, Balance Air
$1,001.70 /

EA
CALGAS-J410A 103L 1000 PPM R-410A, C-10Valve, 1000PSI, Balance Air
$1,001.70 /

EA
CALGAS-JC3H8 103L 1.05% (50% LEL) PROPANE C-10Valve,1000PSI, Balance Air
$834.75 /

EA
CALGAS-JCH4 103L 2.50% (50% LEL) METHANE C-10Valve,1000PSI, Balance Air
$834.75 /

EA
CALGAS-JCO 103L 100PPM CO, C-10 Valve, 1000PSI, Balance Air
$667.80 /

EA
CALGAS-JCO2 103L 1000PPM CO2, C-10 Valve, 1000PSI, Balance Nitrogen
$667.80 /

EA
CALGAS-JH2 103L 2.00% (50% LEL) HYDROGEN C-10Valve,1000PSI, Balance Air
$834.75 /

EA
CALGAS-JO2 103L 20.90% OXYGEN C-10 Vlave 1000PSI, Balance Nitrogen
$834.75 /

EA
CALGAS-JR1233ZD 103L 1000 PPM R-1233ZD, C-10Valve, 1000PSI, Balance Air
$1,051.79 /

EA

All prices shown are excluding tax unless otherwise specified.
