PRU1 Series

Pilot Relays 10A
Higher Reliability, Faster Installation, Superior Accuracy | Sense the Difference

Pilot Relays 10A

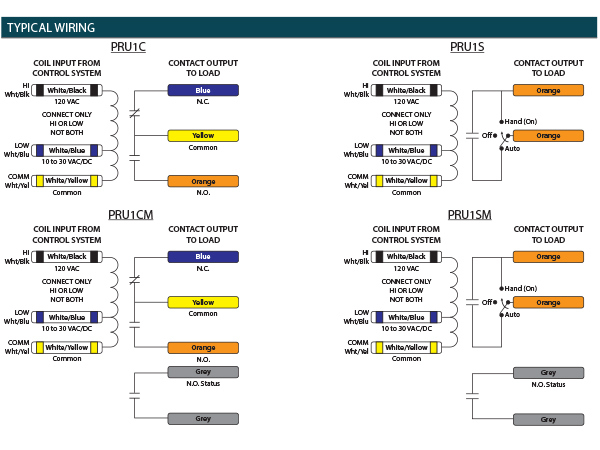

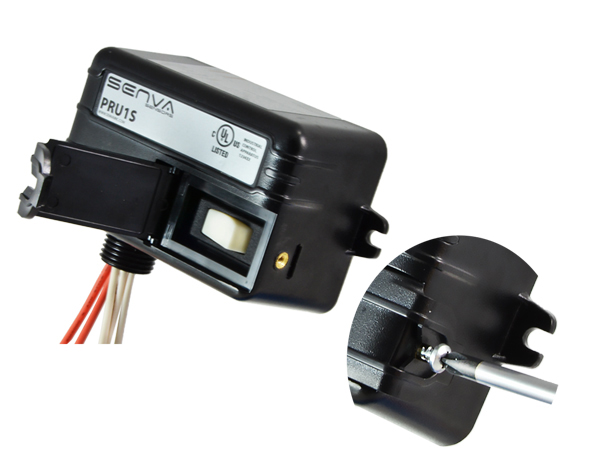

Wrap around LED for visibility at all angles Hinged HOA cover with tamper resistant screw Typical wiring Ideal for multi-voltage input pilot duty relays that mount to existing panels

10A resistive rating
Multi-voltage coil operation
Hand Off Auto option with tamper resistant cover
Current run-status confirmation option

  • Nipple mount to any electrical enclosure
  • Flexible tinned stranded wire… easily fits tight spaces and provides secure connections to wire nuts.
  • Versions with Hand Off Auto (HOA) switch feature with secure screw cover door to prevent tampering.
  • Eliminates costly system override-related service calls

Description

The PR Series pilot relays are ideal multi-voltage input pilot duty relays that mount to existing panels to control loads. External enclosures are not required making them ideal for interfacing loads with building automation control systems. Featuring the highest output in the smallest package, integrated current sensing, and a secure tamper resistant HOA.

Applications

  • Command contactors
  • Control motors
  • Isolation
  • Device interlocking
  • Relay logic
  • Lighting load levels
  • Great for data center Hand Off Auto-Pilot Relays

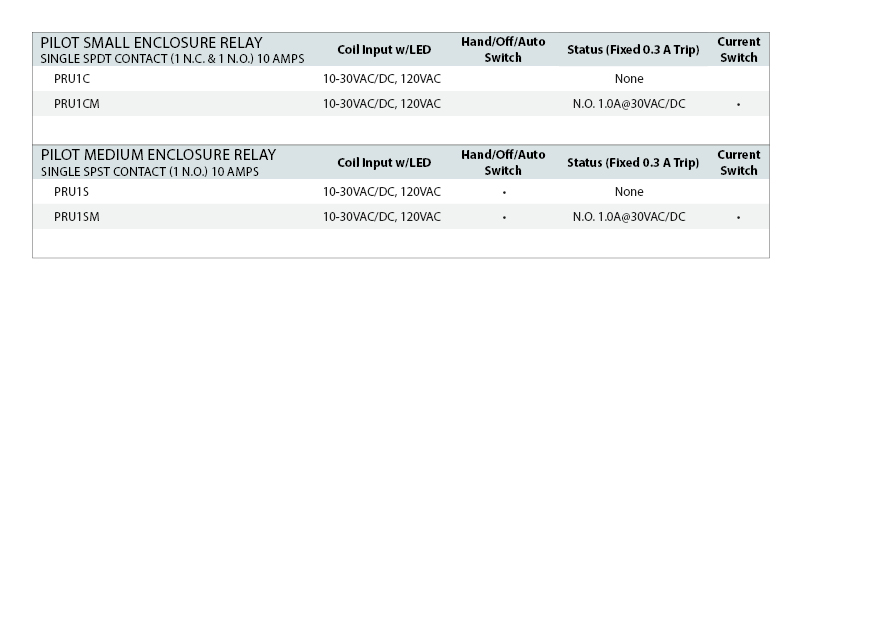

Product Price Quantity
PRU1C PILOT RELAY, 10A, SPDT
$36.00 /

EA

PRU1CM PILOT RELAY, 10A, SPDT, GO NO
$87.00 /

EA

PRU1S PILOT RELAY, 10A, SPST, HOA
$93.00 /

EA

PRU1SM PILOT RELAY, 10A, SPST, HOA, GO NO
$123.00 /

EA

All prices shown are excluding tax unless otherwise specified.
