Power Supply
|
|
12-30VDC/24VAC(1), 24mA max
|
Analog Outputs
|
Analog outputs
|
0-10V, 0-5V, 2-wire or 3-wire 4-20mA (selectable)
|
CO output scaling
|
0-200ppm
|
Refrigerant output scaling
|
0-1000ppm
|
Alarm Relay
|
Relay characteristics
|
N.C. 1A@24/30VDC (50/60Hz) (no mains connection)
|
CO alarm setpoint
|
Activates above 30ppm for 1 hour or 70 ppm for 15 min
|
Refrigerant alarm setpoint
|
Activates above 300ppm
|
LEDs
|
LED indicator CO
|
1 long blink above 30PPM, 1 short blink above 70 ppm
|
LED indicator Refrigerant
|
1 long blink above 300PPM, 1 short blink above 600 ppm
|
End-of-life Indicator
|
3 blinks at 30s intervals
|
Audible Alarm
|
Audible Buzzer CO
|
Activates above 30ppm for 1 hour or 70 ppm for 15 min
|
Audible Buzzer Refrigerant
|
Activates above 300ppm for 1 hour or 600 ppm for 15 min
|
Buzzer level
|
82 dB
|
Alarm Test
|
Hidden button provided for buzzer test
|
CO Sensor Performance
|
Type
|
Electrochemical
|
Accuracy
|
±5%
|
Resolution
|
1ppm
|
Certifications
|
UL2075 Listed Component
|
Life expectancy
|
>7 years
|
Coverage Area
|
5000-7500 square feet
|

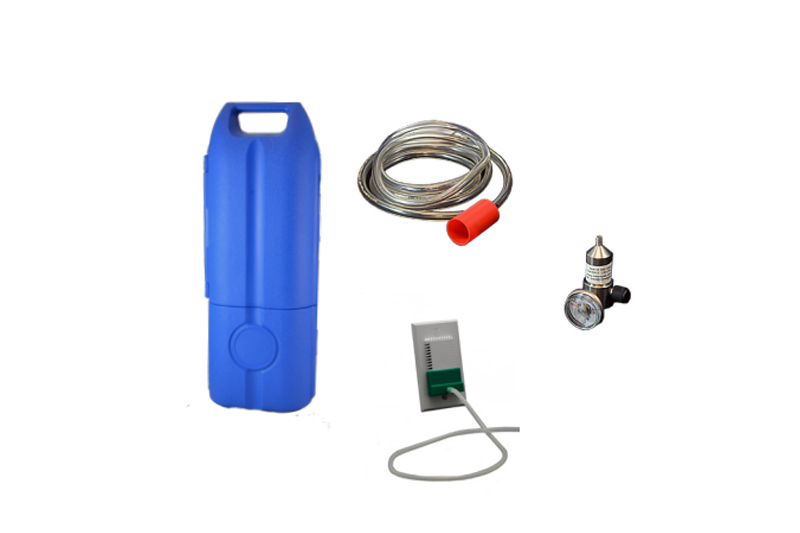

Calibration Interval
|
Annually, hold test button for 10s to enter cal mode
|
Refrigerant Sensor Performance
|
Type
|
MOS
|
Resolution
|
1ppm
|
Life expectancy
|
>10 years (typical life expectancy of MOS sensors)
|
Calibration(2)
|
Calibrated to selected refrigerant
|
Sensitivity of R134A calibrated device
|
@300ppm test gas: 450ppm R410A, 425 ppm R407C, 400ppm R404A, 370ppm R22, 300ppm R134A
|
Other detectable gases(3)
|
R407A, R407F, R427A, R452B, R507, R448A, R449A, R422A, R422D, R452A, R513A, R514A, R32
|
Coverage Area
|
5000-7500 square feet
|
Calibration Interval
|
6 months, hold test button for 10s to enter cal mode
|
Operating Environment
|
Humidity
|
15-95% continuous, 0-95% intermittent
|
Temperature, continuous
|
-40C/-40F |
Max Elevation(4)
|
9000 ft
|
Enclosure
|
Dimensions
|
4.45”h x 2.7”w x 0.5”d (depth measured from wall)
|
Unit Temp Rating
|
-4 to 122oF (-20 to 50oC)
|
Compliance
|
|
CE, RoHS
|
(1) One side of transformer, secondary is connected to signal common. Dedicated transformer is recommended. 15-30VDC/24VAC power supply voltage required for 10 volt output.
(2) R134A sensor is factory calibrated to R134A gas but may be used as a general purpose refrigerant sensor. Sensitivity to some other gases can be found at Senva.com (see QR code on left) . Actual response may vary depending on installation. For more accurate response to a specific gas, a unit may be field calibrated.
(3) These gases my be detected by the sensor but sensitivity curves are not available at this time.
(4) High altitudes will not cause the sensor to not operate, but will affect accuracy. To maintain accuracy spec, a field calibration is recommended.
|
