EM-RS485 Series
Multi-channel Energy Meters
Higher Reliability, Faster Installation, Superior Accuracy | Sense the Difference

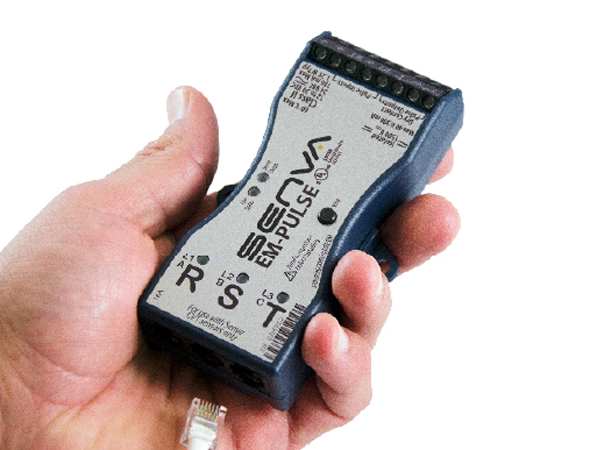

Split-core Rogowski CVT senses both voltage and current, Flexible split-core CVT sensors are easy to install with plug and play high accuracy Super compact, low voltage meter base fits in or outside panel. Screw, DIN, and magnetic mounting. Typical connections - accepts additional pulse inputs! Fusing is typically NOT required! Monitor different voltages and currents with a single meter! Ideal for HVAC equipment. The safest/fastest meter install on the market
BACnet & Modbus
Reduced pointmap version for simple integration (field changeable to full version)
Auto enrolls on network

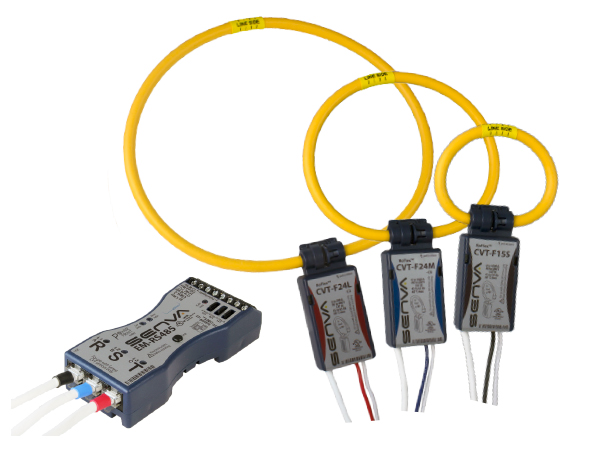

Flexible Split-core Rogowski CVTTM Sensors
Monitor loads from 30-6000A & 90-600V
- Split-core Rogowski CVTTM senses both voltage and current, communicating with the meter through a low voltage data cable

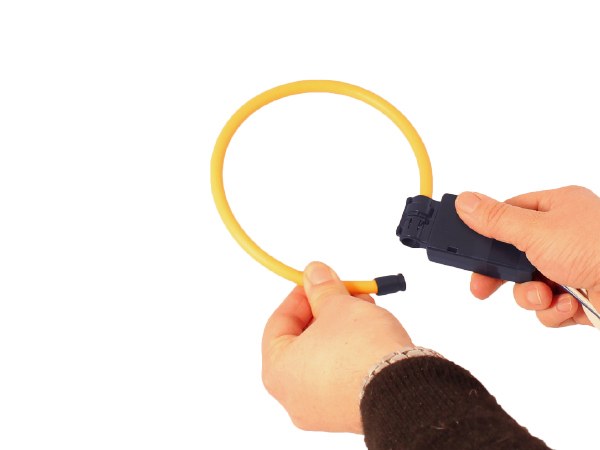

- Easy to install Rogowski CVTTM is lightweight and compact

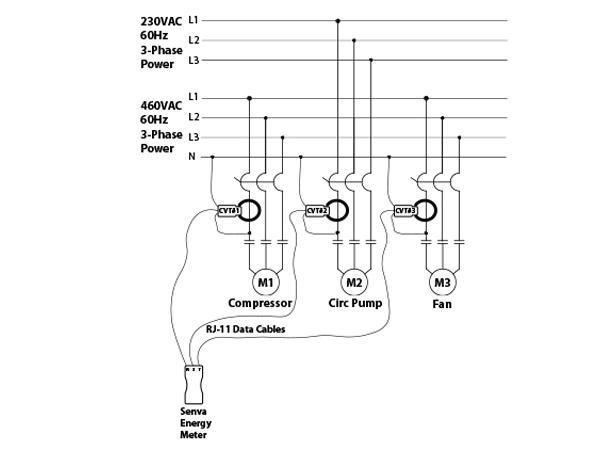

- True 3 channel meter--mix and match different voltages and currents per phase on HVAC equipment
- EM-RS485 self-configures baud rate, serial formal, protocol type and address - eliminating additional configuration steps
- No scaling required--easy set up
- Meter base is entirely low voltage--locate external to panel if desired

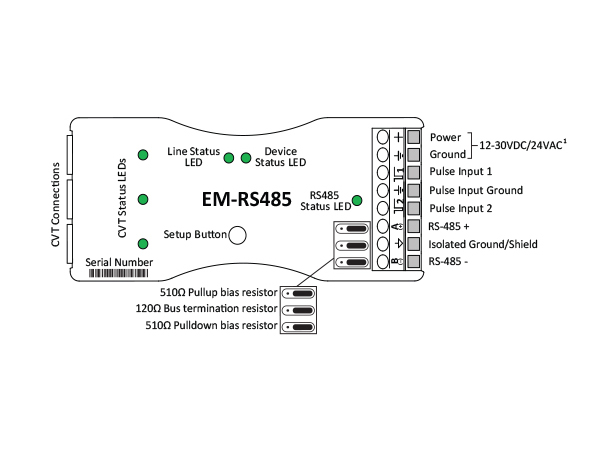

- 2 pulse inputs can connect to a variety of pulse output meters (water, gas, steam, etc.)
- Versatile DIN, screw, and magnetic mount
Description
The EM Series is the safest and fastest meter to install on the market. The unique design makes the meter entirely low-voltage. Ideal for retrofits as the high-voltage components are embedded in the Current/Voltage Transducer (CVT). Experience high-accuracy data-rich power metering in a compact, easy-to-use package. Meter recognizes CVTs automatically, eliminating time-consuming scaling. Each CVT uses digital communication with the meter for superior noise immunity The CVT are individually calibrated and can be mixed or matched as independent meter channels--1% total accuracy! Features both Modbus and self-configuring plug-and-play BACnet MS/TP for seamless integration.
Applications
- Energy Management & performance contracting
- Monitoring for commercial tenants
- Activity-based costing in commercial & industrial facilities
- Real-time power monitoring & load shedding
- Audits/temporary monitoring
- Distributed generation
- Great for data center automation power meter
