Higher Reliability, Faster Installation, Superior Accuracy | Sense the Difference
Choose from 5 aperture sizesEach outputs 333mV or 0.333V at rated currentSense loads 15-2000A CT’s come in a range of inner diameter sizes and amperages
1% total system accuracy (meter & CT) For use with Senva's EMX and Branch Multi-Circuit Meter Flexible Split-core Sensors for easy installation or retrofits Monitor loads from 15-2000A

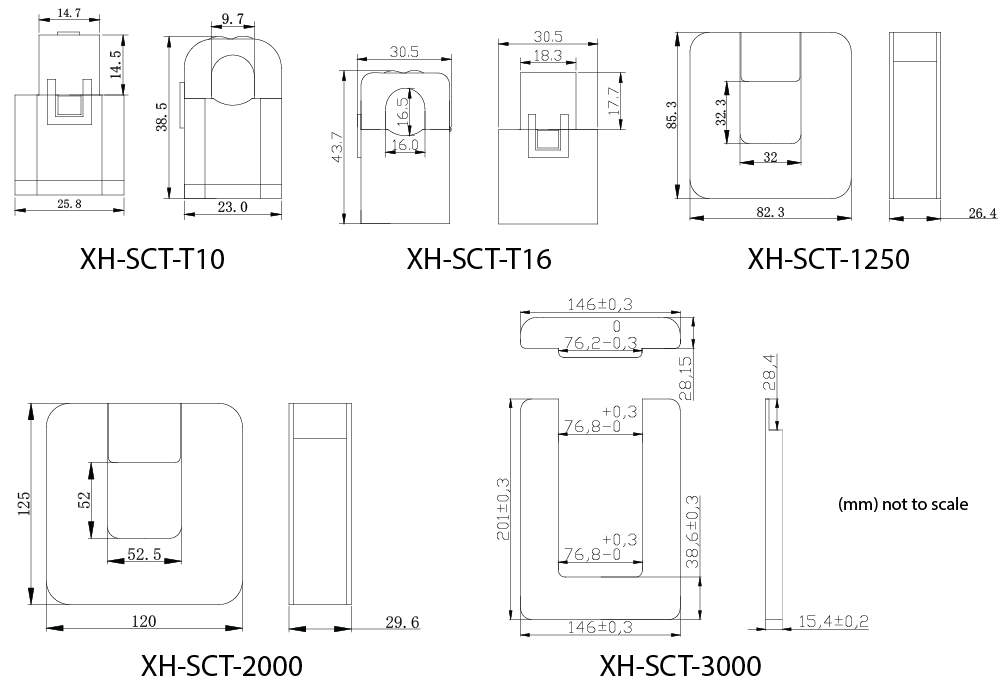

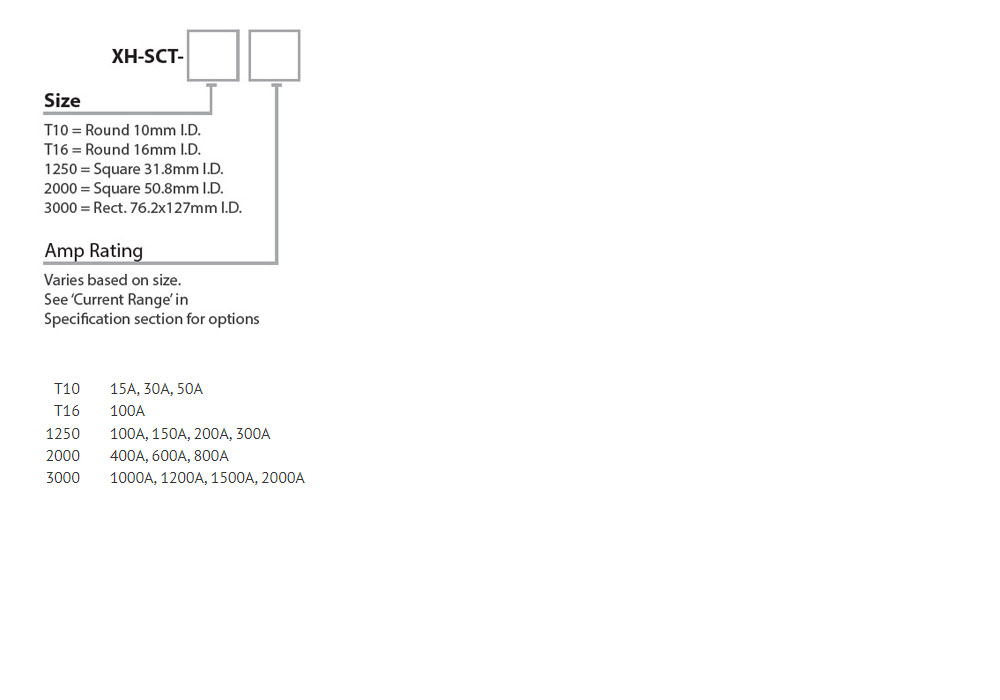

Choose from 5 aperture sizes
Linear output 333mV or 0.333V at rated current
Sense loads 15-2000A
Use with any standard meter or data-logger
UL Listed Energy Monitoring Equipment, UL recognized Instrument Transformer, CE and RoHS compliant
The Senva Metering Series CT’s provide a high accuracy linear 0V to 0.333VAC signal output proportional to the measured current. These can be safely and simply installed to be used with most power meters, data loggers, and other instruments.

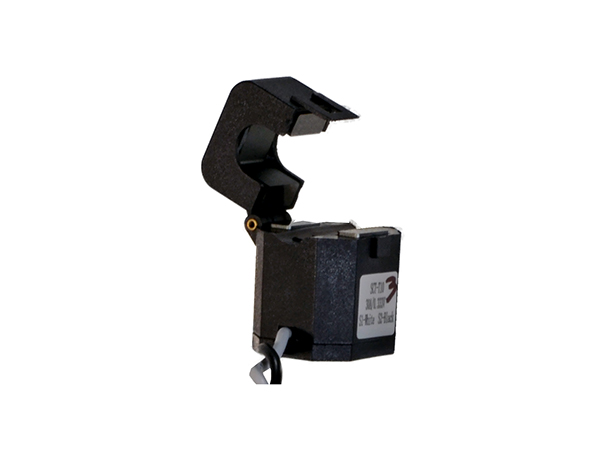

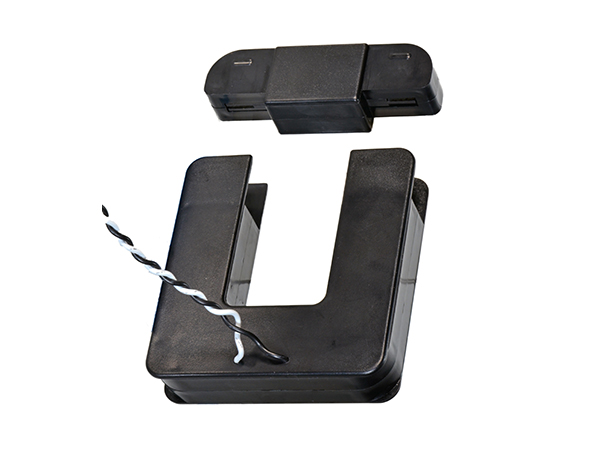

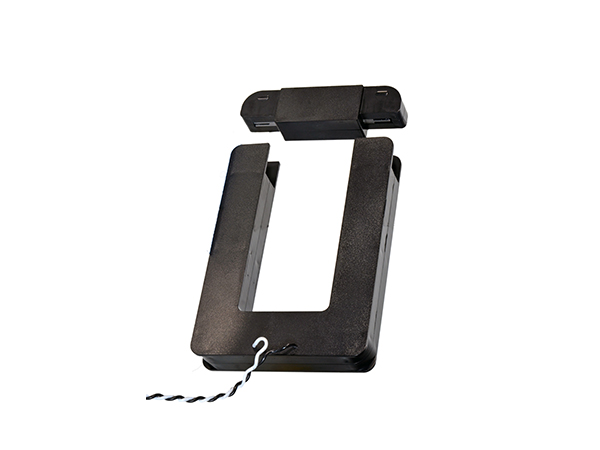

Our Split-core Metering CT’s come in a range of inner diameter sizes and amperages to accommodate a wide variety of installations and retro-fits.
Energy management and performance contracting
Monitoring for commercial tenants
Activity-based costing in commercial and industrial facilities
The datasheet is designed for reference only. Refer to installation instructions that accompany the product and heed all safety instructions. Product improvement is a continuing process at Senva. Changes may occur to products without prior notice.
