P6 Pro Series

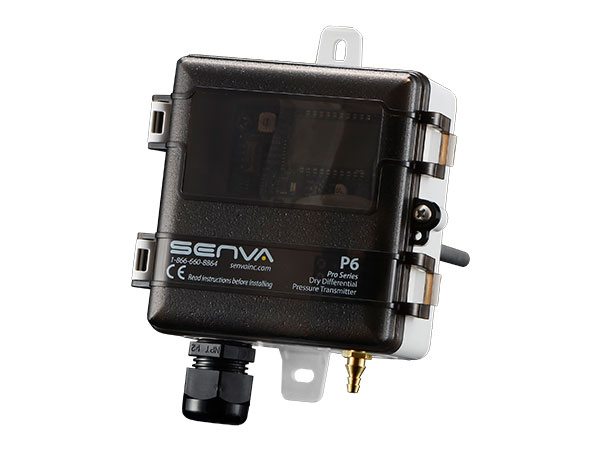

P6 Universal Nema 4 Pressure Sensor
Higher Reliability, Faster Installation, Superior Accuracy | Sense the Difference

P6 Pro Series Pressure (NEMA 4)

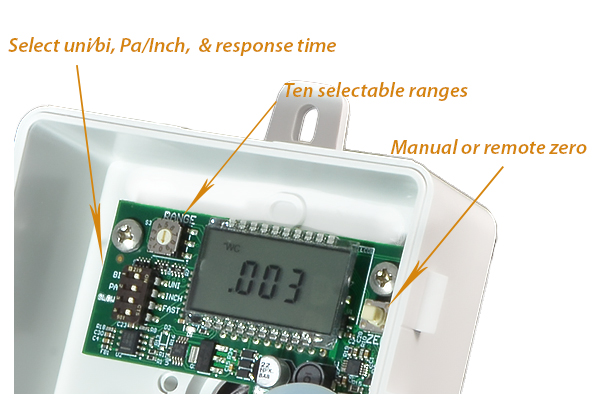

Rugged Enclosure Rugged Enclosure Select mesurement & response time. Ten selectable ranges and manual or remote zero. Made in USA - 7 year warranty

0-5”, 15”, and 40” W.C. ranges; 10 selectable sub-ranges
0-1250, 3750, and 10000 Pa ranges; 10 selectable sub-ranges
LCD display and LED indicator
Nema 4X enclosure (Duct/port version)

Selectable 4-20 mA loop-powered, 4-20 mA 3-wire, 0-5VDC, 0-10VDC for compatibility
10 field selectable pressure ranges to address a wide range of applications with high resolution
Field selectable Pa or WC” display
Zero calibration push button and remote contact input
Models for duct or remote probe applications
Selectable fast/slow response rate (2s fast, 8s slow)
Non-position sensitive for easy placement
Conduit ready or use included water tight cable gland
LED: Power heartbeat, ,momentary rapid flash = autozero complete, continual rapid flash = 110% over pressure

Description

The P6 universal dry media pressure transmitter accurately measures multiple ranges optimized for building (zone) pressure, filter measurement, and static duct applications. Selectable outputs and uni/bi directional readings reduce inventory. Conduit ready Nema 4 enclosure for harsh environments.

Applications

Building (zone) pressure
Filter condition measurement
Duct/static
Wash down environments

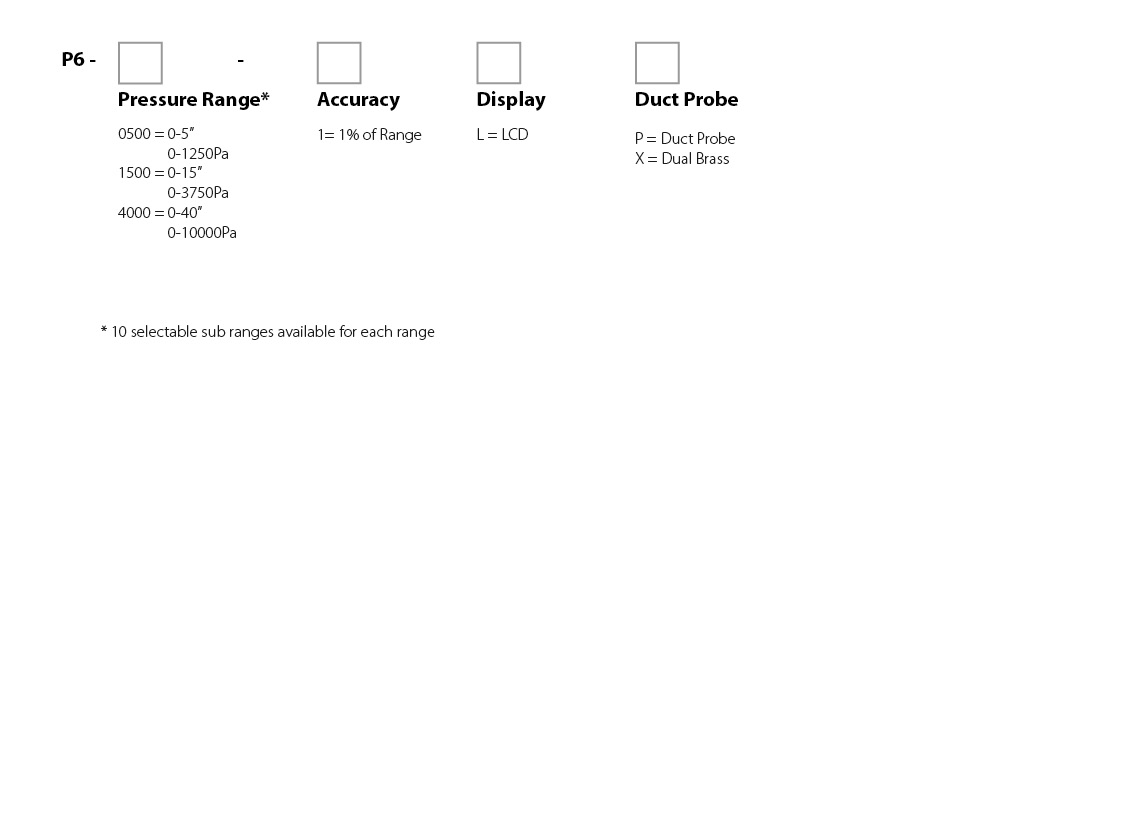

Product		Price
P6-0500-1LP	Dry Diff. Press. 5" Enclosed Universal w/ LCD, Duct Probe	$381.60 / EA
P6-0500-1LX	Dry Diff. Press. 5" Enclosed Universal w/ LCD, Barbs	$349.80 / EA
P6-1500-1LP	Dry Diff. Press. 15" Enclosed Universal w/ LCD, Duct Probe	$381.60 / EA
P6-1500-1LX	Dry Diff. Press. 15" Enclosed Universal w/ LCD, Barbs	$349.80 / EA
P6-4000-1LP	Dry Diff. Press. 40" Enclosed Universal w/ LCD, Duct Probe	$381.60 / EA
P6-4000-1LX	Dry Diff. Press. 40" Enclosed Universal w/ LCD, Barbs	$349.80 / EA

Type	Title
A&E Specifications	P6 Engineering Specifications
CAD Data	P6 Enclosure
Manual	P6 Pro Pressure Installation Maual
Technical Reference	Buy-American-ACT-2023
Product Data	P6 Pro Series Pressure (NEMA 4).pdf
Warning: The datasheet is designed for reference only. Refer to installation instructions that accompany the product and heed all safety instructions. Product improvement is a continuing process at Senva. Changes may occur to products without prior notice.

All prices shown are excluding tax unless otherwise specified.

has been added to your cart. This product requires 2 PWT sensors to operate.
Please add 2 PWT sensors to your cart.

Product		Price	Quantity

items per page

Power Supply		12-30VDC/24VAC (1), 30mA max.
Output type	Selectable outputs	4-20 mA loop powered, 4-20 mA 3-wire, 0-5VDC, 0-10VDC
Output scaling	Max range (selectable sub ranges)	0-5” (0.1/0.25/0.5/1/1.5/2/2.5/3/4/5”wc), 0-1250Pa (25/50/125/250/375/500/625/750/1000/1250 Pa) 0-15” (0.25/0.5/1/2.5/3/4/5/8/10/15”wc) 0-3750Pa (50/125/250/625/750/1000/1250/2000/2500/3750 Pa) 0-40” (1/2.5/5/8/10/15/20/25/30/40”wc) 0-10000Pa (250/625/1250/2000/2500/3750/5000/6250/7500/10000 Pa)
Operating Temperature	Operating range	-4 to 140F (-20 to 60ºC)
Operating Temperature	Compensated range	-4 to 140F (-20 to 60ºC)
Media compatibility		Dry, oil-free air, N2
Sensor Type		MEMS silicon piezoresistive; precision calibrated
Sensor Performance	Accuracy	±1.0% of selected range (combined linearity and hysteresis)
	Zero Tolerance	Included in accuracy specification
	Span Tolerance (3)	±1.00%
	Zero Drift (1 year) Auto-zero input	0.004”WC/year max. 0.4% for units >0.5”w.c. Push-button and contact closure
	Thermal Shift (Zero and Span)	0.02% FSO/ºC (0.01%FSO/ºF) measured from 22ºC (72ºF)
	Overpressure	up to 5” models: 41.5”w.c.; 10” models: 133”w.c.; 25” models: 332”w.c.
	Max Static Line Pressure	up to 5” models: 41.5”w.c.; 10” models: 133”w.c.; 25” models: 332”w.c.
	Burst Pressure	up to 5” models: 83”w.c.; 10” models: 166”w.c.; 25” models: 415”w.c.
	Position Sensitivity	Non-position sensitive
	Auto-zero input	Push-button and N.O. contact closure
Response Rate	Selectable	Fast = 2 seconds, slow = 8 seconds
Dimensions		4.0”h x 3.7”w x 2.1”d
Agency	Compliance	CE, RoHS
Enclosure	Flammability	UL94 5VB
Enclosure	Environmental	NEMA 4X
