ECMset
ECM (Brushless motor) Current Switch
Higher Reliability, Faster Installation, Superior Accuracy | Sense the Difference
Turn-on setpoint minimizes false trips due to standby ECM inverter draw. Optional CR command relay for stop/start/status in a single labor saving device.
Adjustable minimum turn-on
Prevents false trip due to ECM stand-by current
Split-core operation to 200A
N.O. 30VAC/DC output

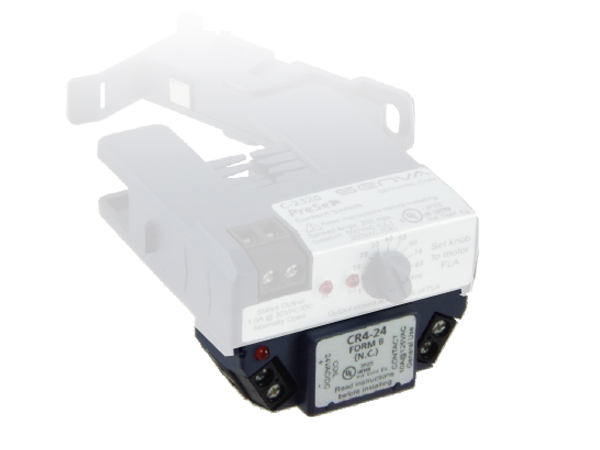

Optional command relay with LED
- Reliable operation on ECM motors

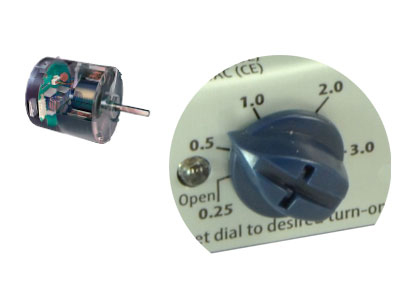

- Set trip point with easily scaled dial to that sensor only turns on when motor is actually running
- Super low turn-on adjustment scale Maintenance-free—no call backs
- No hazardous guesswork. Multi-turn adjustments are a thing of the past
- Reduce the risk of arc flash; sensor can be set without calibration in live enclosure
- Industry leading 7 year warranty

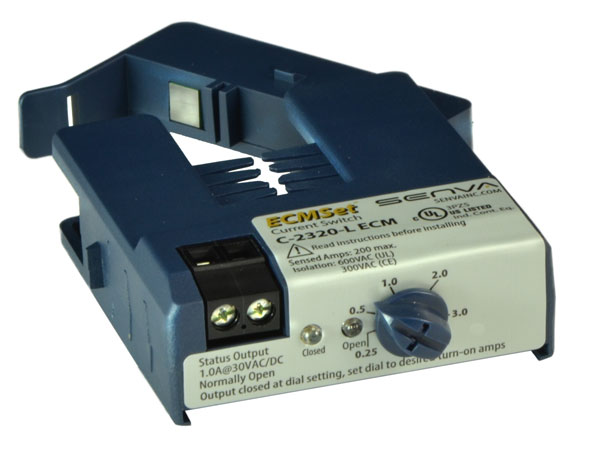

Description
ECMSet™ is designed for no/go run detection on electronically commutated motors (ECMs) . ECMs draw a small amount of AC standby current to power their inverter, up to 1A, even when the motor isn’t running. The ECMSet features a high resolution adjustable turn-on setpoint to ignore standby current, preventing false ON status indications.
Applications
- No/go run detection for EC motors
- On set-point prevents false trips due to EC inverter stand-by current
- Great for data center current switch sensing
