P5 Series

P5 Universal Dry Pressure
Higher Reliability, Faster Installation, Superior Accuracy | Sense the Difference

5”, 10”, and 25” W.C. versions with four selectable sub-ranges
1250, 2500, 6250 Pa versions with four selectable sub-ranges
Optional LCD display and LED indicator
Dual 0-5/10VDC, 4-20mA (loop and 3-wire)
PATENT PENDING
  • Unique design for duct, filter, and remote probe applications all in one

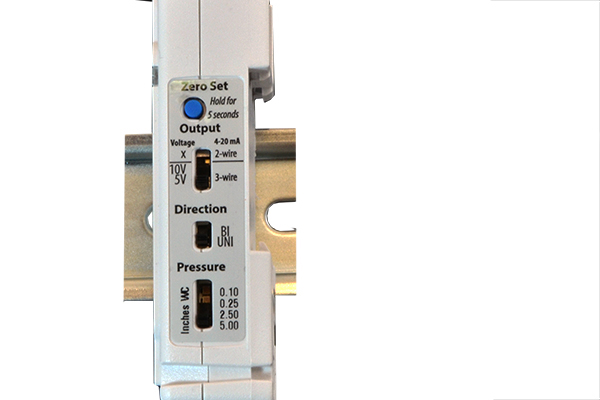

  • Universal output 4-20 mA loop powered, 4-20 mA 3-wire, 0-5VDC, 0-10VDC--always have the right product on hand
  • Selectable sub-ranges reduces inventory
  • Zero calibration push button and remote contact input
  • Non-position sensitive for easy placement Dual DIN mount:
  • Side mount for high density OEM applications, flat panel mount for LCD viewable panel mount.

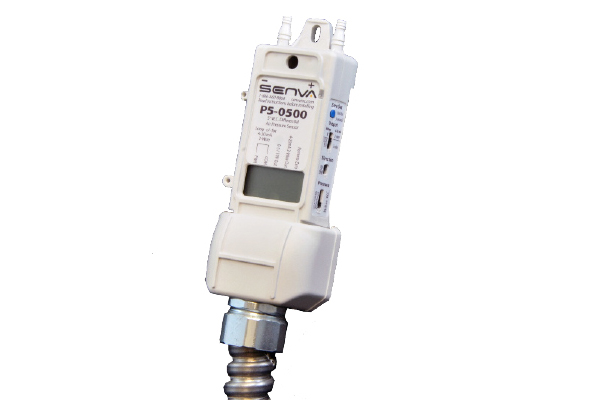

  • Conduit ready for for 3/8” flex connectors
  • LED visual status indications of operation LED: Power heartbeat, ,momentary rapid flash = auto-zero complete, continual rapid flash = 110% over pressure
  • LED facilitates locating sensor in ductwork

Description

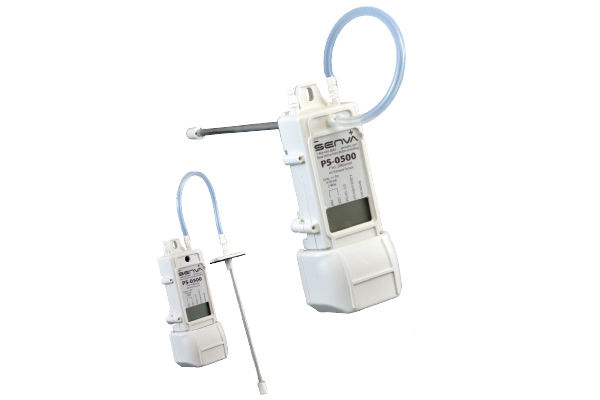

The P5 universal dry media pressure transmitter accurately measures multiple ranges optimized for building (zone) pressure, filter measurement, and static duct applications.  Selectable outputs and uni/bi directional readings reduce inventory.  Innovative probe integrates with unit or can be mounted remotely for static pressure.  Optional LCD for panel mount readings and set up. PATENT PENDING.

Applications

  • Building (zone) pressure
  • Filter condition measurement
  • Duct/static

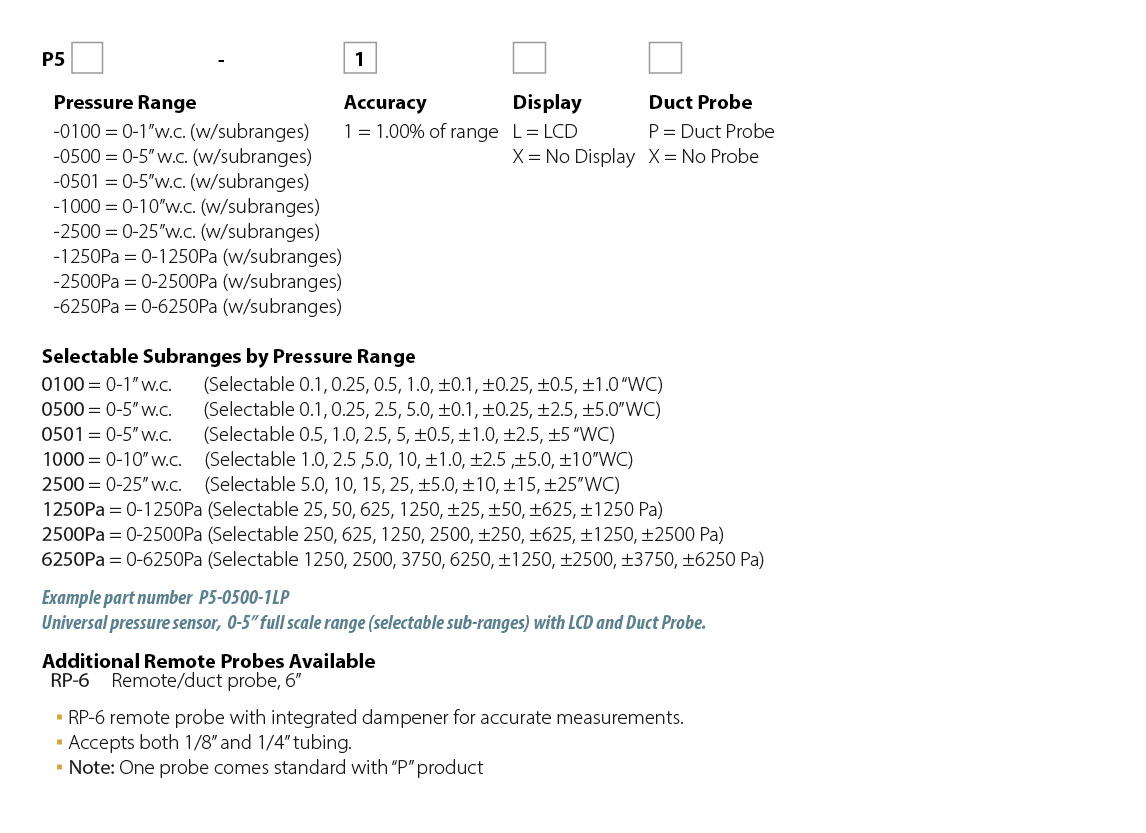

Product Price Quantity
P5-0500-1LP Dry Diff. Press. 5" Universal,w/ LCD, Duct Probe
$314.82 /

EA

P5-0500-1LX Dry Diff. Press. 5" Universal,w/ LCD, No Probe
$292.56 /

EA

P5-0500-1XP Dry Diff. Press. 5" Universal,No Display, w/ Duct Probe
$262.35 /

EA

P5-0500-1XX Dry Diff. Press. 5" Universal,No Display, No Probe
$238.50 /

EA

P5-1000-1LP Dry Diff. Press. 10" Universalw/ LCD, Duct Probe
$314.82 /

EA

P5-1000-1LX Dry Diff. Press. 10" Universalw/ LCD, No Probe
$292.56 /

EA

P5-1000-1XP Dry Diff. Press. 10" UniversalNo Display, w/Duct Probe
$262.35 /

EA

P5-1000-1XX Dry Diff. Press. 10" UniversalNo Display, No Probe
$238.50 /

EA

P5-1250PA-1LP Dry Diff Press 1250Pa Universaw/ LCD, Duct Probe
$314.82 /

EA

P5-1250PA-1LX Dry Diff Press 1250Pa Universaw/ LCD, No Probe
$292.56 /

EA

All prices shown are excluding tax unless otherwise specified.
