P4 Value Series

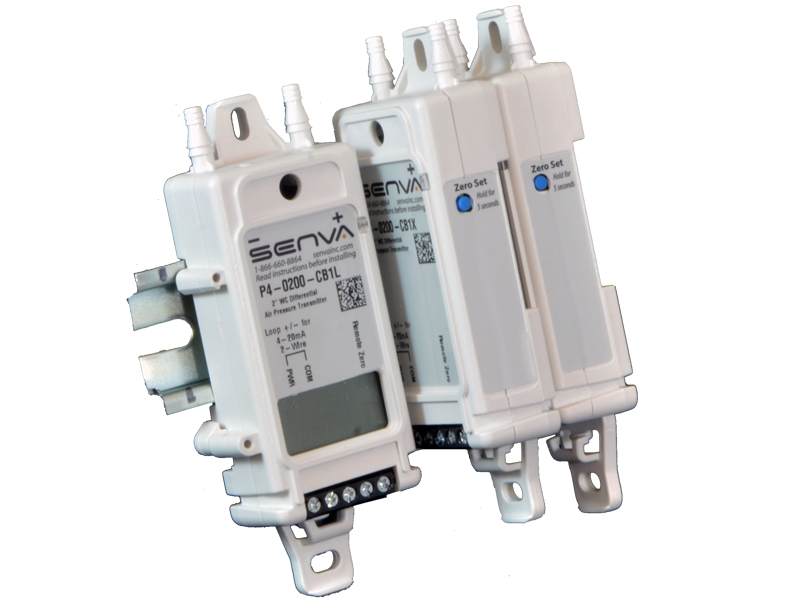

P4 Value Dry Pressure
Higher Reliability, Faster Installation, Superior Accuracy | Sense the Difference

Models from 0.1 to 25" W.C.
0-5VDC/10VDC or 4-20 mA loop powered versions
LED status indication
Zero push button and contact closure
PATENT PENDING
  • Address duct, filter, and remote probe mounting with a single unit with RP-6 probe addition
  • Non-position sensitive for easy placement
  • 0-5VDC/10VDC or 4-20 mA loop powered versions
  • DIN mount - forward for LCD panel applications
  • Side DIN mount to maximize panel space
  • Conduit cover for 3/8” flex connectors
  • LED: Power heartbeat, ,momentary rapid flash = auto-zero complete, continual rapid flash = 110% over pressure
  • LED facilitates locating sensor in ductwork

Description

The P4 dry media pressure transmitter features fixed ranges optimized for building (zone) pressure, filter measurement, and static duct applications.   Innovative static probe integrates with unit or can be mounted remotely for static pressure.  PATENT PENDING.

Applications

  • Building (zone) pressure
  • Filter condition measurement
  • Duct/static
  • OEM HVAC
Product Price Quantity
P4-0010-BB1XX 0.1" Fixed 0-10VDC Bi-Dir 1% No Disp No Probe
$159.00 /

EA

P4-0010-BU1LP 0.1" Fixed 0-10VDC Uni-Dir 1% LCD Disp Duct Probe
$248.04 /

EA

P4-0010-BU1LX 0.1" Fixed 0-10VDC Uni-Dir 1% LCD Disp No Probe
$209.88 /

EA

P4-0010-BU1XP 0.1" Fixed 0-10VDC Uni-Dir 1% No Disp Duct Probe
$184.44 /

EA

P4-0010-BU1XX 0.1" Fixed 0-10VDC Uni-Dir 1% No Disp No Probe
$159.00 /

EA

P4-0010-CB1LP 0.1" Fixed 4-20mA Bi-Dir 1% LCD Disp Duct Probe
$248.04 /

EA

P4-0010-CB1LX 0.1" Fixed 4-20mA Bi-Dir 1% LCD Disp No Probe
$209.88 /

EA

P4-0010-CB1XP 0.1" Fixed 4-20mA Bi-Dir 1% No Disp Duct Probe
$184.44 /

EA

P4-0010-CB1XX 0.1" Fixed 4-20mA Bi-Dir 1% No Disp No Probe
$159.00 /

EA

P4-0010-CU1LP 0.1" Fixed 4-20mA Uni-Dir 1% LCD Disp Duct Probe
$248.04 /

EA

All prices shown are excluding tax unless otherwise specified.
