Key Points
- High accuracy CO readings
- 0-5/10V/2 and 3-wire 4-20mA CO transmitter
- Relay, LED and Audible alarms
- Sleek & functional low-profile design
Applications
- Detect CO in indoor environments
- Alert occupants of elevated gas levels
- Ventillation control--turn off equiipment when CO is detected
- Economizer control
DescriptionDesigned to maximize safety in work and school environments, the TG0R Value Series features a UL2034 recognized CO sensor . Audible buzzer, relay output and end-of-life indication. Choose the analog output that works best for each job.
Versatile Safety Features
- Audible buzzer alarm
- End-of-life indication for sensor element
- Buzzer test button for safety checks
- Relay output for alarm indication
Superior Sensing
- UL2034 recognized electrochemical CO sensing element
- 7 year life expectancy on CO elements
- Calibration mode makes calibration quick and easy
- Ideal for schools
Simple and versatile
- Fits easily in standard single gang boxes
- 45 degree terminals for ease of wiring
- Saves installation time and reduces callbacks

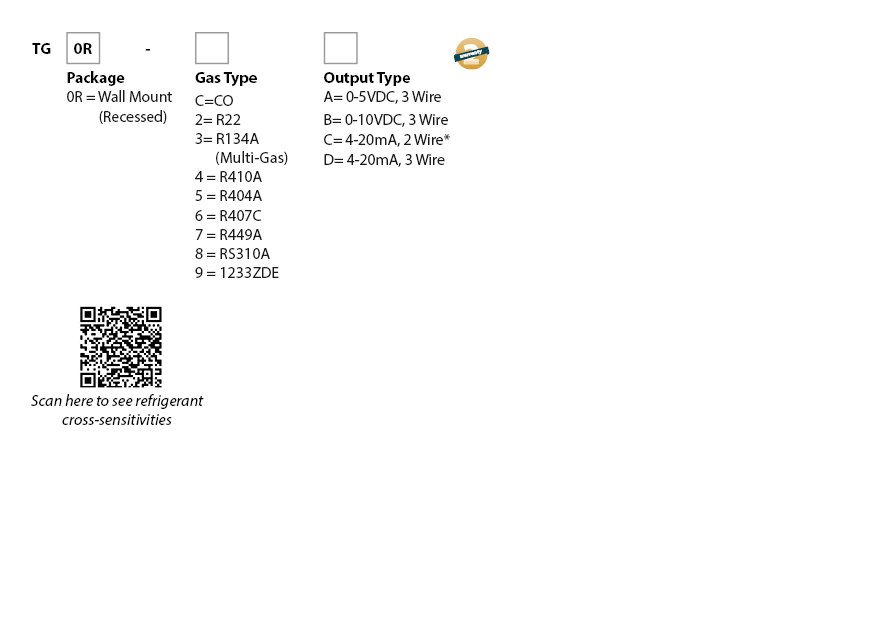

Choose from a range of options
- 0-5V, 0-10V, 2-wire and 3-wire 4-20mA options
- Thermistor outputs for temperature optional
SPECIFICATIONS |
Power Supply |
|
12-30VDC/24VAC (1), 24mA max. |
Outputs |
Options |
0-10V, 0-5V, 2-wire or 3-wire 4-20mA (selectable) |
CO output scaling |
0-200 ppm |
Alarm Relay |
Relay characteristics |
N.C. 1A@24/30VDC (50/60Hz) (no mains connection) |
CO alarm setpoint |
Activates above 30ppm for 1 hour or 70 ppm for 15 min |
LEDs |
LED indicator CO |
1 long blink above 30PPM, 1 short blink above 70 ppm |
End-of-life Indicator |
3 blinks at 30s intervals3 blinks at 30s intervals |
Audible Alarm |
Audible Buzzer CO |
Activates above 30ppm for 1 hour or 70 ppm for 15 min |
Alarm Test |
Hidden button provided for buzzer test |
CO Sensor Performance |
Type |
Electrochemical |
Accuracy |
±5% |
Resolution |
1ppm |
Certifications |
UL2034 Listed Component |
Life expectancy |
>7 years |
Coverage Area |
5000-7500 square feet |
Enclosure |
Dimensions |
4.45”h x 2.7”w x 0.5”d (depth measured from wall) |
Temp Rating |
-20 to 50C operating |
Compliance |
|
CE, RoHS |
- One side of transformer, secondary is connected to signal common. Dedicated transformer is recommended. 15-30VDC/24VAC power supply voltage required for 10 volt output.
